AUTOMATIC STRETCH WRAPPING MACHINES

BACK TO ORION PACKAGING

logo orionOrion's series of automatic stretch wrapping machines require no operator. Once the load is brought to the machine, it is automatically wrapped to pre-programmed parameters. An operator is only needed to change the stretch film when the roll is empty, dramatically decreasing labour time.

_______________________________________________________________________________________________________

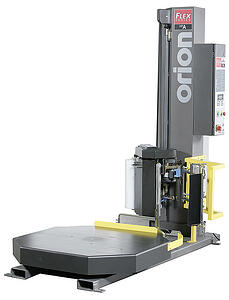

Portable Automatic Stretch Wrapping System Flex HPA

 Flex HPA

The Flex HPA performs the entire wrap cycle automatically, only requiring an operator to place the pallet load and pull the switch.

Performance Features:

  • 15 RPM Variable Speed with 'soft-start'
  • 5,000 lbs. Maximum Load Weight Capacity
  • High Efficiency 260% Powered Film Pre-stretch
  • 48" by 48" Turntable for Loads up to 50" by 50"
  • Automatic Wrap Cycle for Operator Efficiency
  • Octagonal Turntable for Easy Forklift Loading
  • AC/VFD Motors Reduce Maintenance
  • Structural Steel Frame for Durability
  • Ergonomically Friendly Design
  • Forklift Portable from Front or Rear
  • Precision Ring Bearing Turntable Support


 For more information, contact us!Click me

_______________________________________________________________________________________________________

Portable Automatic Stretch Wrapping System Flex LPA



Flex LPASimilar to the HPA, the Flex LPA performs the entire wrap cycle automatically, only requiring an operator to place the pallet load and pull the switch.

Performance Features:

  • 15 RPM Variable Speed with 'soft start'
  • 5,000 lbs. Maximum Load Weight Capacity
  • High Efficiency 260% Powered Film Pre-Stretch
  • 63" Diameter Turntable for Loads up to 50" by 50"
  • Automatic Wrap Cycle for Operator Efficiency
  • Load via Forklift, Pallet Jack, or Electric Walkie
  • AC/VFD Motors Reduce Maintenance
  • Full Surround Deck Protects Turntable
  • Structural Steel Frame for Durability
  • Ergonomically Friendly Design
  • Forklift Portable from Front or Rear
  • Precision Ring Bearing Turntable Support with added DuraGlide bearings


For more information, contact us!
_______________________________________________________________________________________________________

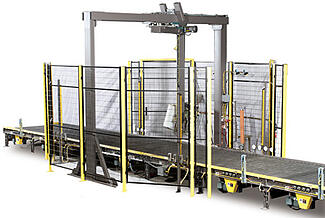

Rotary Tower Automatic Stretch Wrapping System MA-ST

describe the image

The MA-ST machine is a fully automatic medium-heavy duty rotary tower conveyorized stretch wrapping system. It is excellent for medium duty production level applications requiring durability and reliability.

Performance Features:

  • 12 RPM Rotation Speed
  • 30-45 Loads per Hour Production Capacity
  • 4,500 lbs. Maximum Load Weight Capacity
  • 80" Maximum Wrap Height
  • 30 Feet per Minute Conveyor Speed
  • 48" by 48" Maximum Load Size
  • Allen Bradley MicroLogix 1400 Controller
  • Category 2 Safety Rating
  • Easy to Install, Floor Anchored Integral Stand Design
  • Structured Steel Construction

For more information, contact us!

____________________________________________________________________________________________________

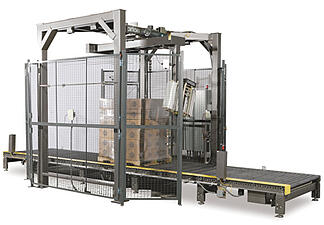

Rotary Tower Automatic Stretch Wrapping System MA-DX

describe the image

 The MA-DX machine has a long list of desirable features at price that won't break the budget. It features a film delivery system that faces the side for easier film loading and threading. This system allows for the fastest, easiest, and safest film loading on the market.

Performance Features:

  • 18 RPM Rotation Speed
  • 50-65 Loads per Hour Production Capacity
  • 4,500 lbs. Maximum Load Weight Capacity
  • 80" Maximum Wrap Height
  • 40 Feet per Minute Conveyor Speed
  • 48" by 48" Maximum Load Size
  • Allen Bradley MicroLogix 1400 Controller
  • Category 2 Safety Rating

For more information, contact us!______________________________________________________________________________________________________

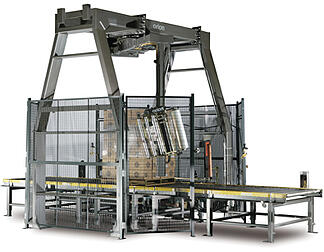

Rotary Tower Automatic Stretch Wrapping System MA-X

describe the image

The MA-X is a top of the line rotary tower in terms of speed, weight capacity, and features. It is excellent for high production level applications which demand maximum speed, efficiency, and long term durability.

Performance Features:

  • 30 RPM Rotation Speed
  • 60-75 Loads per Hour Production Capacity
  • 4,500 lbs. Maximum Load Weight Capacity
  • 80" Maximum Wrap Height
  • 50 Feet per Minute Conveyor Speed
  • 48" by 48" Maximum Load Size
  • Allen Bradley MicroLogix 1400 Controller
  • Category 2 Safety Rating

For more information, contact us!



_______________________________________________________________________________________________________

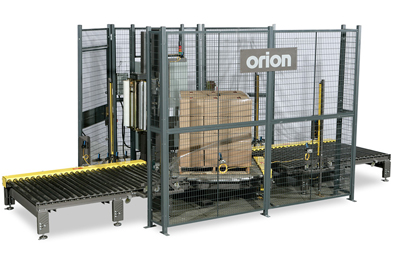

Turntable Automatic Stretch Wrapping System FA

 turntable FA

  The Orion FA offers full surround 8 foot high steel mesh fencing. This machine uses the MicroLogix 1400 controller from Allen Bradley with a 6" colour HMI operator panel. AC motors with VFD drives insure high reliability and low maintenance. The frame is built from 100% structural and plate steel for maximum durability. The maximum weight capacity of the Orion FA is 4,000 lbs. with a conveyor speed of 30 feet per minute. The FA also has a soft start and stop feature to prevent load displacement.

For more information, contact us!


_______________________________________________________________________________________________________
