FAT ANALYSIS X-RAY INSPECTION

BACK TO EAGLE PI

EAGLE PIThe EAGLE Fat Analysis systems analyze up to a 60lb (28kg) boxes or bulk (120US tons/hour) for chemical lean (CL) value within a 1% margin of error. Unlike traditional sampling methods, the EAGLE Product Inspection DEXA (dual energy x-ray) technology analyzes 100% of the throughput. Cartons can also be tracked by bar code for easy batching and traceability. In addition to the fat analysis, the FA system check weighs and uses the SimulTask software to inspect for contaminants such as: metal, glass, stone bone and wire. The EAGLE Product Inspection line is not affected by freeze/thaw plant conditions, box moisture, metal foil or meat conductivity making the Eagle FA a perfect addition to your production line.

_______________________________________________________________________________________________________

Eagle FA

Eagle FA
    • Inspects 100% of throughput with better than 1% CL measurement accuracy
    • Line speeds up to 30 cartons per minute or 120US tons/hour
    • FA system reads barcodes from each carton providing the ability to catalog each carton based on CL value
    • Network Capable
    • Multiple inspection capability combined with Fat Analysis provides a fast Return on Investment


Click me

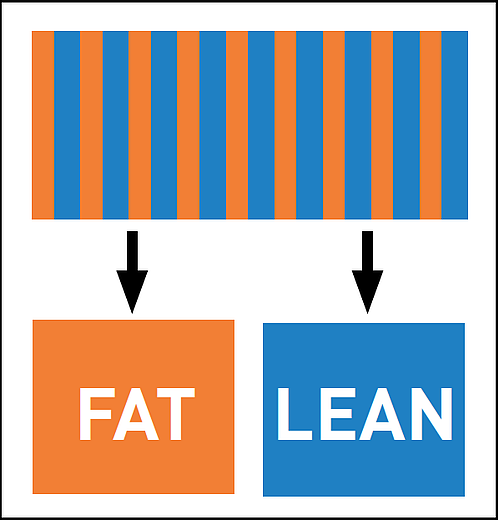

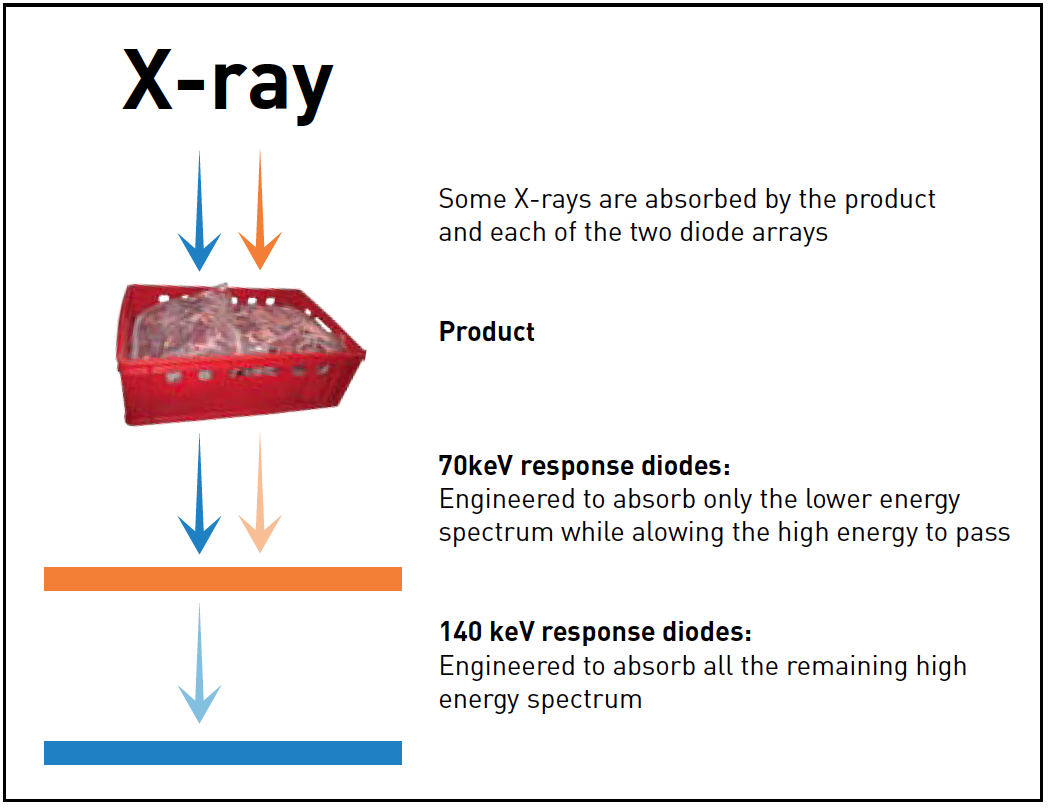

EAGLE's Eagle FA system works on the principles of DEXA technology. DEXA technology works by measuring the amount of X-rays thatare absorbed by fat and lean through the use of two specific X-ray energies.By taking the ratio of energy absorbed at a high energy to the level of energyabsorbed at a lower energy the result of this ratio can be used to infer theaverage atomic numbers of the material scanned.

DEXA X-ray Inspection



DEXA X-ray Inspection_______________________________________________________________________________________________________
