Semi-Automatic Case Formers & Case Erectors

describe the imageBACK TO WEXXAR-BEL

Wexxar/BEL semi-automatic case forming / case erecting equipment is designed specifically for manual case packing lines. The case formers / case erectors provide an economical and effective way of reducing the amount of manual labor required to pre-form cases for hand packing lines.

_______________________________________________________________________________________________________

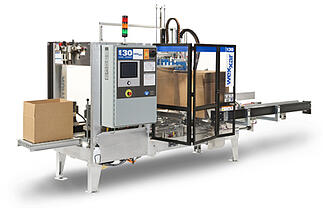

Fully Automatic Case Former/Case Erector WF30

describe the imageFeatures & Specs:

  • Speed: Maximum 30 cases per minute (CPM)
  • Size maximum: L: 24 x W: 17 x D: 16.5 Maximum E = 25
  • Size minimum (Smaller/Custom sizes available by request): L: 6 x W: 5 x D: 3.5 Minimum E = 6
  • Positive Case Squaring System: Lines up and squares the case during sealing, creating visually appealing case output.
  • Single Push Transport System: Combines linear bearing guides with a mechanically adjustable case pusher for case squaring.
  • Dekka high performance tape head case closure system is standard
  • Precision folded and sealed cases around the clock
  • Positive case opening without vacuum easily accepts marginal quality corrugated board
  • Large case feed magazine
  • Corrosion-resistant, inline construction
  • U.L. listed electrical panel
  • Simple 10 minute size changeover
  • Interlocked safety guarding



For more information, contact us!Click me

_______________________________________________________________________________________________________

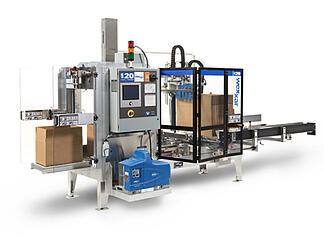

Fully Automatic Case Former/Case Erector WF20

Features & Specs:

  • Fully Automatic Case Former Case Erector WF20Speed: Maximum 20 cases per minute (CPM)
  • Size maximum: L: 24 x W: 17 x D: 16.5 Maximum E = 25
  • Size minimum (Smaller/Custom sizes available by request): L: 6 x W: 5 x D: 3.5 Minimum E = 6
  • Positive Case Squaring System: Lines up and squares the case during sealing, creating visually appealing case output.
  • Single Push Transport System: Combines linear bearing guides with a mechanically adjustable case pusher for case squaring.
  • Tool-less Size Changes: Not only a truly tool free operation, but we have cut the time for a full size change to under 5 minutes!
  • Tilt Out Tape Head: Tape head tilts out over outfeed conveyor, for easy rethreading or tape head replacement.



For more information, contact us!
_______________________________________________________________________________________________________

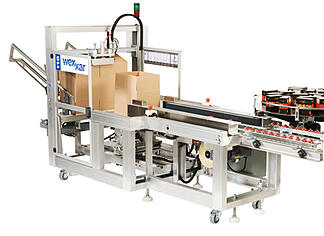

Fully Automatic Case Former/Case Erector WF10

Features & Specs:

  • Fully Automatic Case Former Case Erector WF10Speed: Maximum 10 cases per minute (CPM)
  • Size maximum: L: 20 x W: 15 x D: 15 Maximum
  • Size minimum (Smaller/Custom sizes available by request): L: 9 x W: 7 x D: 5 Minimum
  • Positive Case Squaring System: Lines up and squares the case during sealing, creating visually appealing case output.
  • Toolless Size Changes: Not only a truly tool free operation, but we have cut the time for a full size change to under 5 minutes.



For more information, contact us!
