SEMI-AUTOMATIC STRETCH WRAPPING SYSTEMS

BACK TO ORION PACKAGING

EAGLE PI

Orion's series of semi-automatic stretch wrapping machines are generally portable and usually require an operator to attach the film, run the cycle, and then detach the film. These systems have possible throughput rates of up to 30 loads per hour.

_______________________________________________________________________________________________________

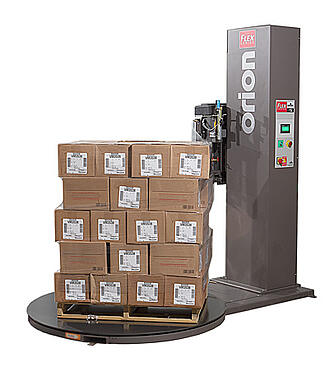

Turntable Pallet Wrapper Low Profile Standard Flex LPS

turntable Flex LPS



The Flex LPS holds the same standards of durability, reliability, and performance as the rest of the Flex line, yet at an affordable price. This system is well suited for loading by either forklift or pallet jack with available ramp option.

Performance Features:

  • 12 RPM Variable Speed with 'soft start'
  • 4,000 lbs. Maximum Load Weight Capacity
  • 260% Powered Pre-Stretch Reduces Film Cost
  • Deluxe Control Panel with Touch Panel HMI
  • 63" Round Turntable for Loads up to 55" by 55"
  • 80" Maximum Load Height
  • Easy to Read Monochrome Touch Panel
  • Password Lockout Capability
  • AC/VFD Motors Eliminate Brush Maintenance
  • Automatic Load Height Photoeye
  • Strutural Steel Frame for Long-Term Durability
  • Forklift Tubes for Easy Portability
  • Long-Lasting DuraGlide Bearing Support
  • No-Slip Direct Chain & Sprocket Turntable Drive
  • Seperate UP/DOWN Carriage Speed

For more information, contact us!

 _______________________________________________________________________________________________________

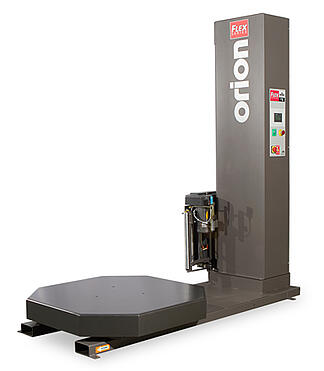

Turntable Pallet Wrapper High Profile Standard Flex HPS

describe the image



Similar to the LPS, the Flex HPS holds the same standards of durability, reliability, and performance as the rest of the Flex line, yet at an affordable price. This system is ideal for applications where it is primarily loaded by forklift.

Performance Features:

  • 12 RPM Variable Speed with 'soft start'
  • 4,000 lbs. Maximum Load Weight Capacity
  • 260% Powered Pre-stretch Reduces Film Cost
  • Deluxe Control Panel with Touch Panel HMI
  • 48" by 48" Octagonal Turntable for Loads up to 55" by 55"
  • 80" Maximum Load Height
  • Easy to Read Monochrome Touch Panel
  • Password Lockout Capability
  • AC/VFD Motors Eliminate Brush Maintenance
  • Automatic Load Height Photoeye
  • Structural Steel Frame for Long-Term Durability
  • Forklift Tubes for Easy Portability
  • 4-Point Caster Support for Quiet and Reliable Operation
  • No-Slip Direct Chain & Sprocket Turntable
  • Drive Seperate UP/DOWN Carriage Speed

For more information, contact us!

 _______________________________________________________________________________________________________

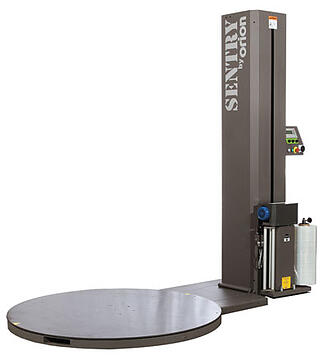

Semi-Automatic Stretch Wrapping System Sentry

describe the image

The Sentry is an entry level, turntable style wrapping machine designed for economical and efficient unitization of pallet loads with stretch film. It can dramatically increase efficiency and lower film cost per load compared to hand stretch wrapping.

Performance Features:

  • Wraps pallet loads (52" by 52" by 80" max.) weighing up to 4,000 lbs.
  • Variable turntable speed: maximum 9 RPM
  • Adjustable Top and Bottom wrap count
  • Variable speed carriage to apply more or less stretch film
  • Forklift portable design for easy machine transport
  • Easy to use control panel with multi-language display
  • Available loading ramp for pallet jack or walkie loading
  • 200% film pre-stretch to reduce film cost and increase film strength
  • Load height sensing photoeye
  • Rugged steel construction for long-term reliability
  • 12-Point roller cam turntable support for reliable operation
  • Heavy-duty industrial chain drives turntable rotation
  • Dual chain film carriage drive
  • Home position alignment

For more information, contact us!

_______________________________________________________________________________________________________

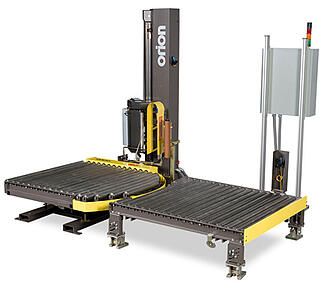

Conveyorized Twin Station Stretch Wrapper Flex CTS

describe the image

 The Flex CTS is designed to increase fork lift efficiency and reduce load handling times by providing a powered conveyor turntable and a gravity conveyor used as a staging platform for wrapped loads waiting to be picked up. It dramatically reduces to amount of time handling loads, while offering throughput speeds approaching fully automatic systems at a fraction of the cost. The Flex CTS eliminates the need for operator to attach and cut film and eliminates time loss from forklift drivers watching loads being wrapped.

For more information, contact us!




_______________________________________________________________________________________________________

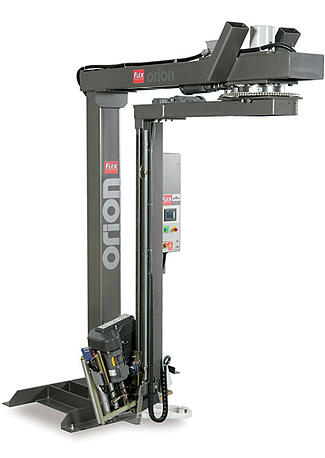

Rotary Tower Semi-Automatic Pallet Wrapper Flex RTD

describe the image

 The Flex RTD represents the latest in rotary tower stretch packaging technology. It can be loaded by pallet jack or lift truck. The Flex RTD is ideal for unitizing even the most difficult loads, including those that are extremely heavy, light, fragile, or unstable.

Performance Features:

  • 16 RPM Variable Speed Tower
  • No Maximum Load Weight Capacity
  • Up to 30-40 Loads per Hour Production Speed
  • High Performance Film Delivery Carriage
  • Floor Mounted Control Panel for Flexibility
  • Precision Ring Bearing Drive System
  • AC/VFD Motors for Reduced Maintenance
  • Structural Steel Construction for Durability
  • Heavy Duty Chain & Sprocket Drive
  • Tower Mounted Obstacle Sensing System

For more information, contact us!



_______________________________________________________________________________________________________

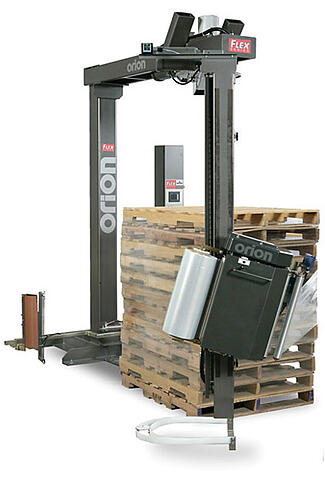

Rotary Tower Automatic Pallet Wrapper RTA

describe the image

The Flex RTA is the fastest way to boost end of line packaging efficiency. The operator need only place the load and pull the switch, the system performs all wrapping functions.

Performance Features:

  • 16 RPM Variable Speed Tower
  • Up to 40-50 Loads per Hour Production Speed
  • Automatic Film Tail Attach/Cut/Press
  • Start Cycle with Hanging Lanyard
  • No Maximum Weight Capacity
  • Floor Mounted Control Panel for Flexibility
  • Precision Ring Bearing Drive System
  • AC/VFD Motors for Reduced Maintenance
  • Structural Steel Construction for Durability
  • Heavy Duty Chain & Sprocket Drive
  • Tower Mounted Obstacle Sensing System

For more information, contact us!

 _______________________________________________________________________________________________________

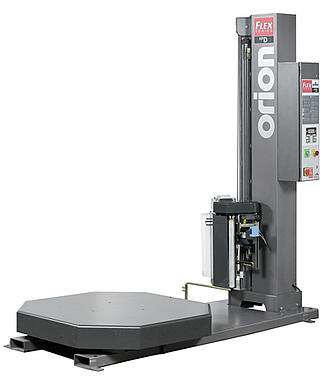

Turntable Pallet Wrapper High Profile Deluxe

high profile deluxeThe High Profile Deluxe is built with economy, efficiency, and safe operation in mind. It is easy to install with a dual turntable option for existing machines. This is a low cost alternative to purchasing a second machine.

Performance Features:

  • 15 RPM Variable Speed with 'soft start'
  • 5,000 lbs. Maximum Weight Capacity
  • High Efficiency 260% Powered Film Pre-Stretch
  • 48" by 48" Turntable for Loads up to 55" by 55"
  • Octagonal Turntable for Easy Forklift Loading
  • AC/VFD Motors Reduce Maintenance
  • Structural Steel Frame for Durability
  • Ergonomically Friendly Design
  • Forklift Portable from Front or Rear
  • 8 Heavy-Duty Turntable Support Casters

For more information, contact us!

_______________________________________________________________________________________________________

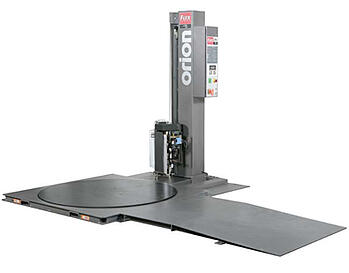

Turntable Pallet Wrapper Low Profile Deluxe

describe the imageSimilar to the HPD, the Low Profile Deluxe is built with economy, efficiency, and safe operation in mind. This system features a full surround deck to protect the turntable and to insure products are kept safe and secure.

Performance Features:

  • 15 RPM Variable Speed with 'soft start'
  • 5,000 lbs. Maximum Load Weight Capacity
  • High Efficiency 260% Powered Film Pre-Stretch
  • 63" Diameter Turntable for Loads up to 55" by 55"
  • Load via Forklift, Pallet Jack, or Electric Walkie
  • AC/VFD Motors Reduce Maintenance
  • Structural Steel Frame for Durability
  • Ergonomically Friendly Design
  • Forklift Portable from Front or Rear
  • DuraGlide Support Bearings for Quiet & Reliable Operation

For more information, contact us!
